Equipment Available for Rent

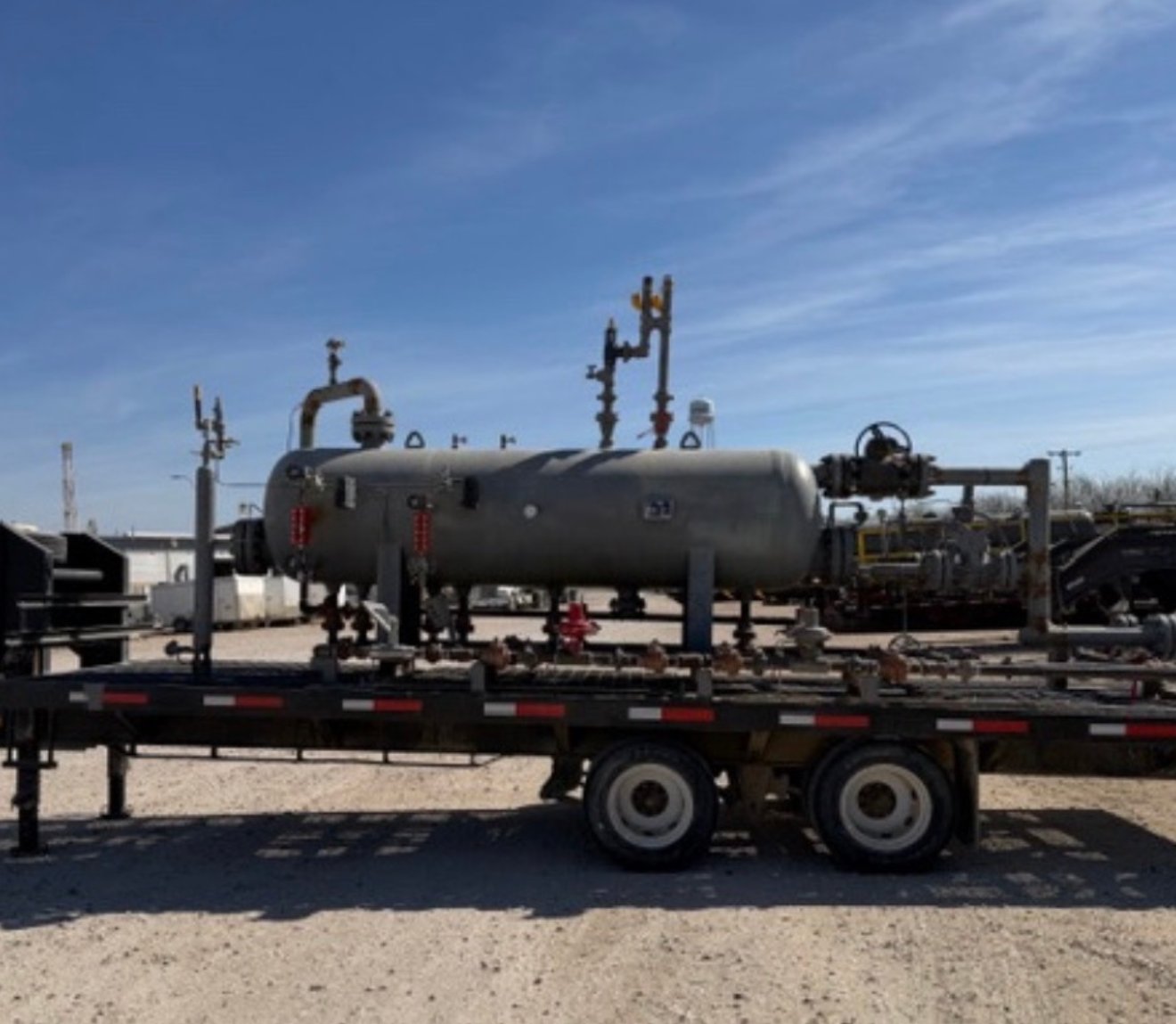

3-Phase Separators

Separate well fluids into oil, gas and water streams for well testing and production use.

• Vessel sizes available: 24x6, 36x10, and 42x10
• Working pressure 600 to 2,000 psi
• Trailer and skid mounted options
• Code: ASME VIII Div. 1 or 2, ANSI B31.3, NACE MR0175 (H2S)

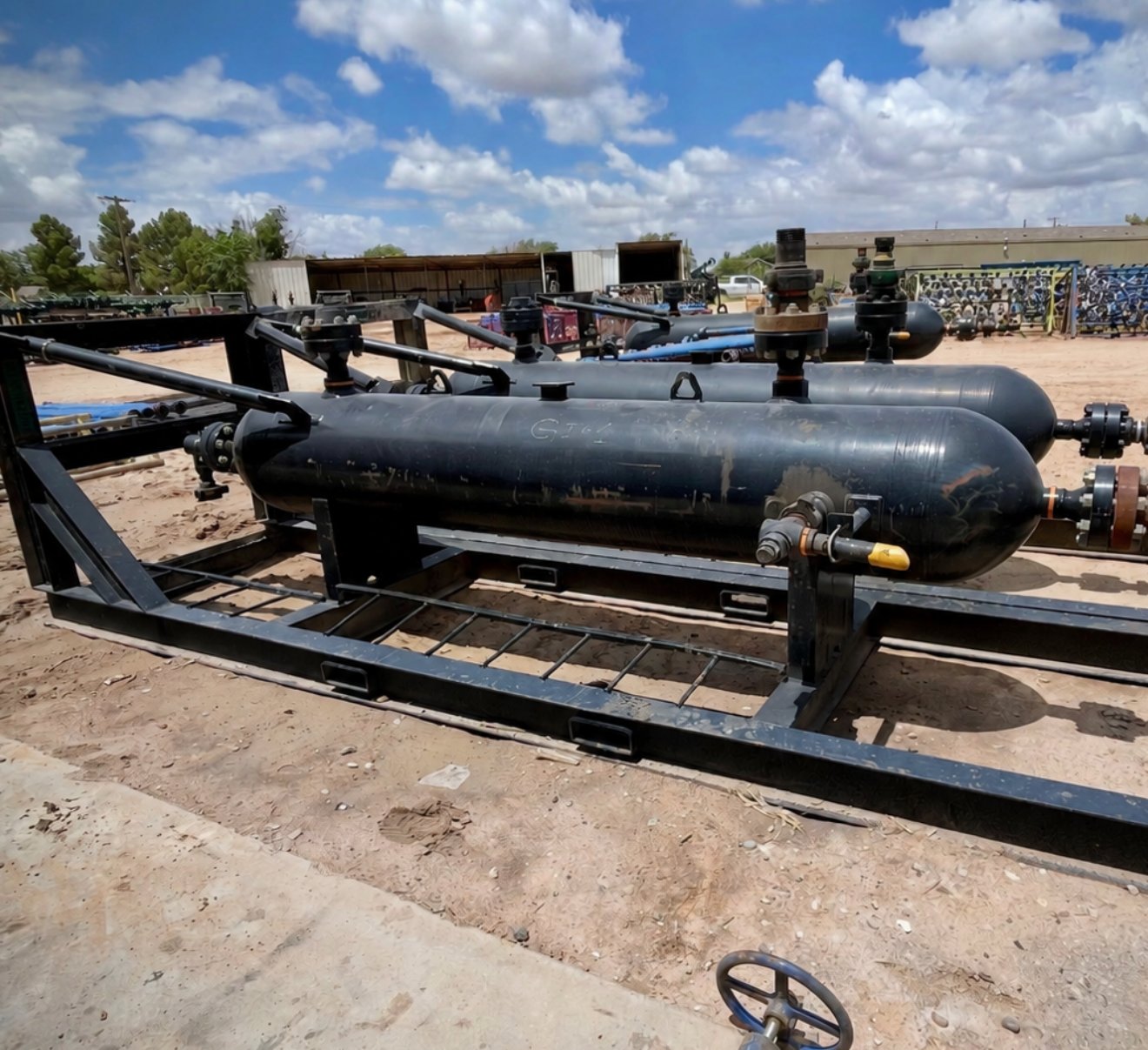

Sand Separators

Compact units for separating sand and other solids from the flow stream.

• Pressure ratings of 5,000, 10,000 and 15,000 psi
• Standards: ASME VIII Div. 2, B31.3, NACE

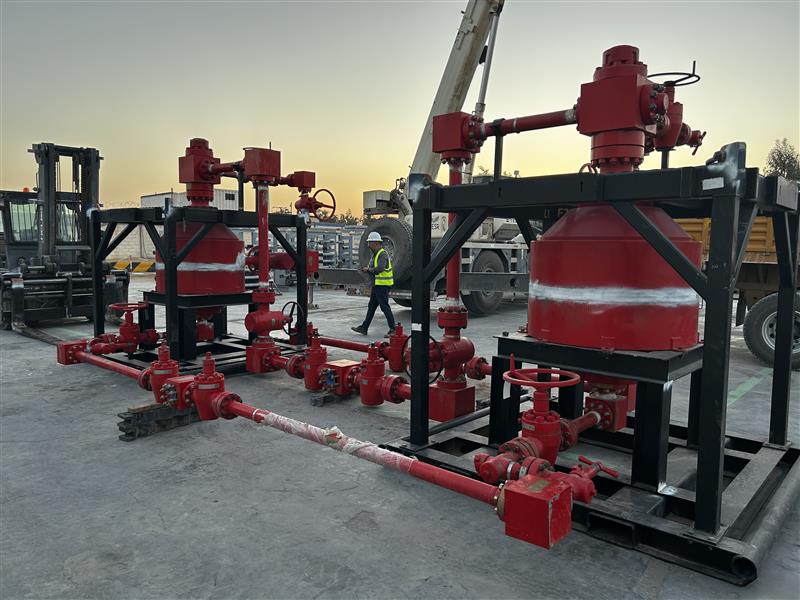

Spherical Separators

Spherical vessel separators for well testing and production separation duties.

• 5,000 – 15,000 psig available
• Connections: 3" 1502 hammer unions or API flanged
• Available with plug valves or gate valves

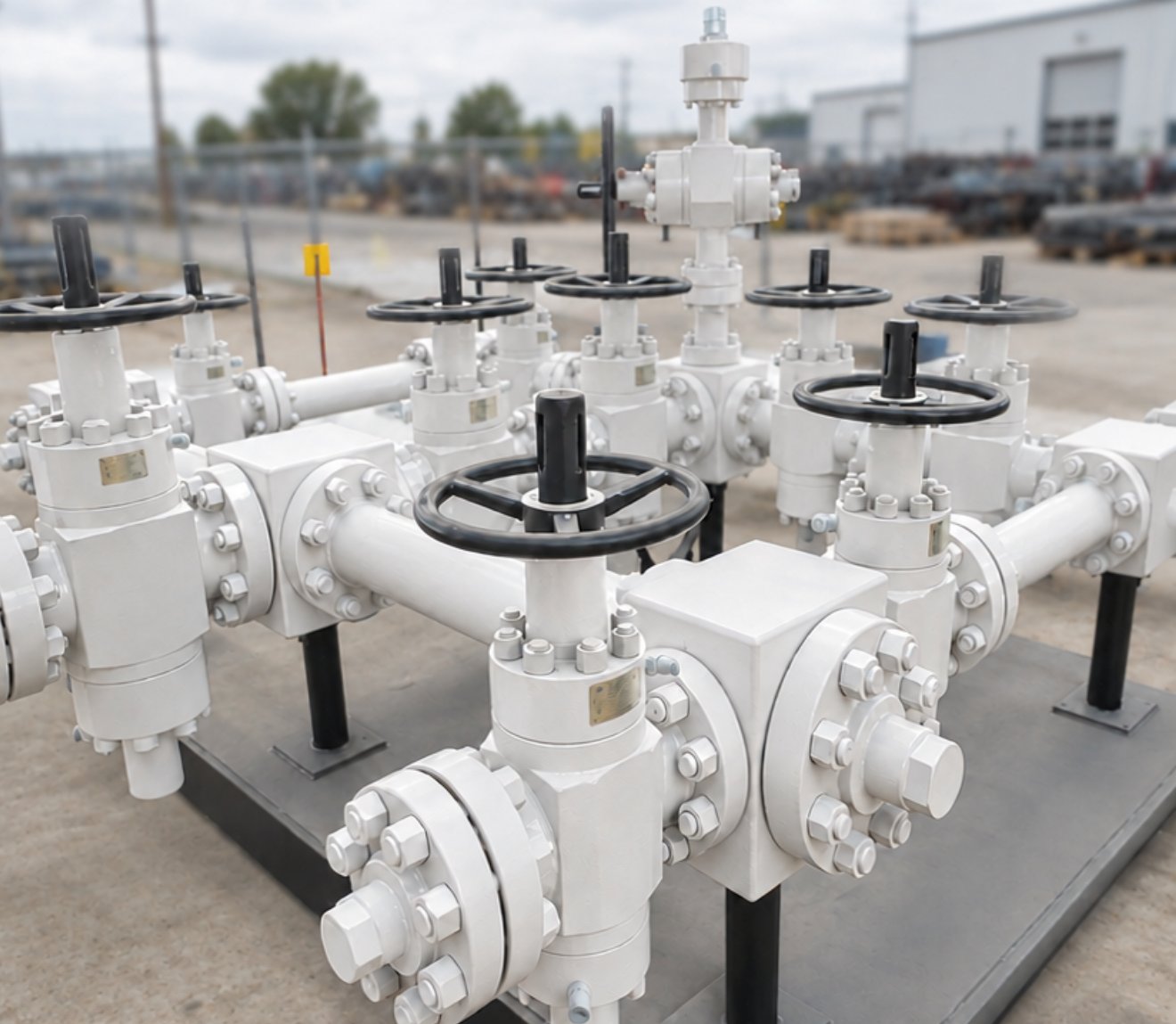

Manifolds

Manifolds for routing and controlling well flow during testing and production.

• Available in 5 valve, 10 valve or 12 valve configurations
• Chokes: 2-9/16" or 3-1/16"
• Pressure: 10,000 or 15,000 psi working
• Valve type and control: gate or plug valves, manual or hydraulic actuation
• Standards and service: API 6A (PSL-2 or 3), NACE, sweet or sour. Temperature class P+U or P-X
• Connections: 3" Fig. 1502 unions or API flanged hubs. Skid-mounted

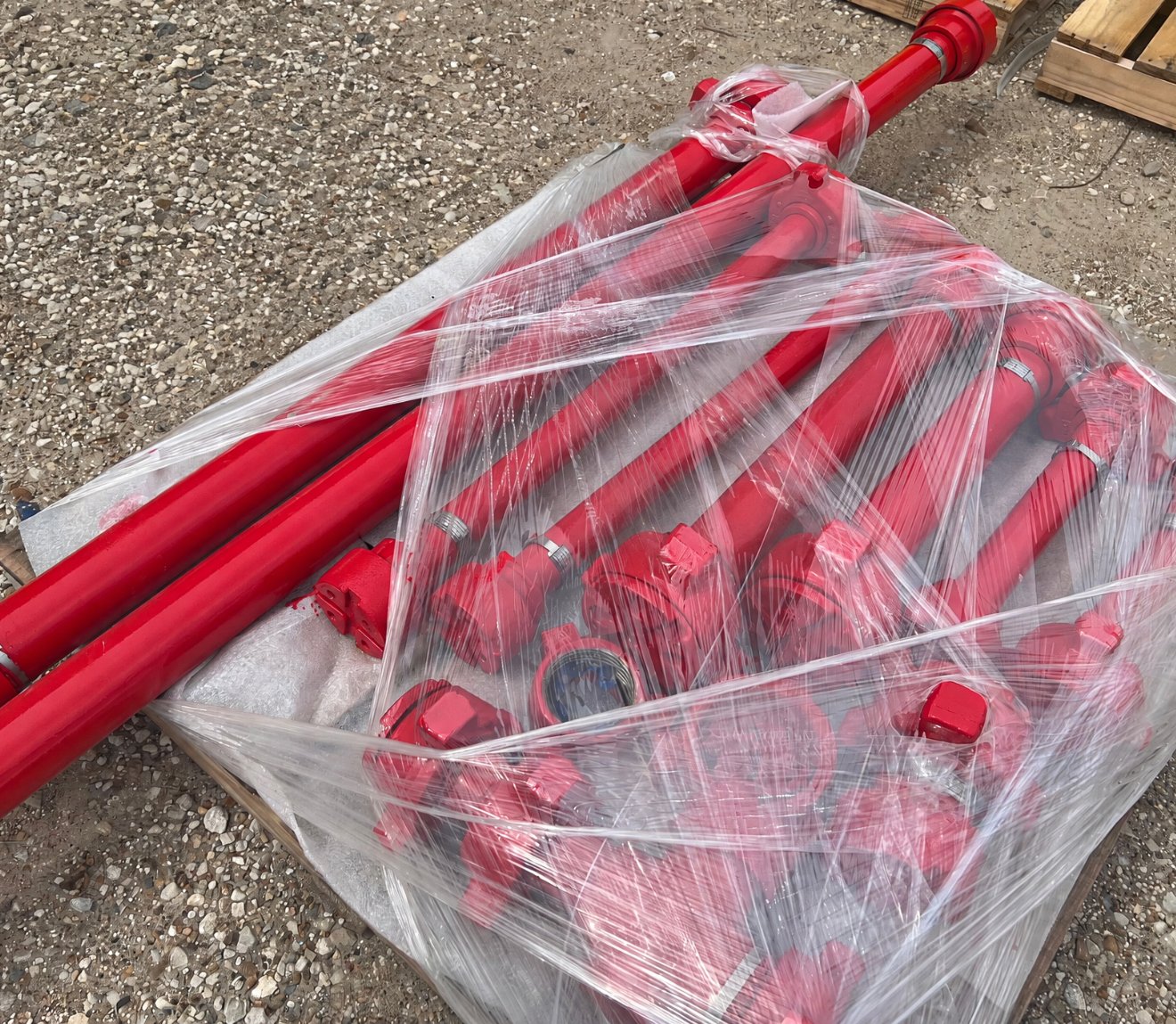

Flow Iron

High-pressure flow iron to connect separators, manifolds and other equipment on location.

• Sizes are 2" and 3". Working pressure is up to 15,000 psi
• Connection: Fig. 1502 hammer unions
• Pup joints come in lengths of 2 ft to 10 ft
• Fittings include elbows, laterals, tees and crosses, with male and female end options

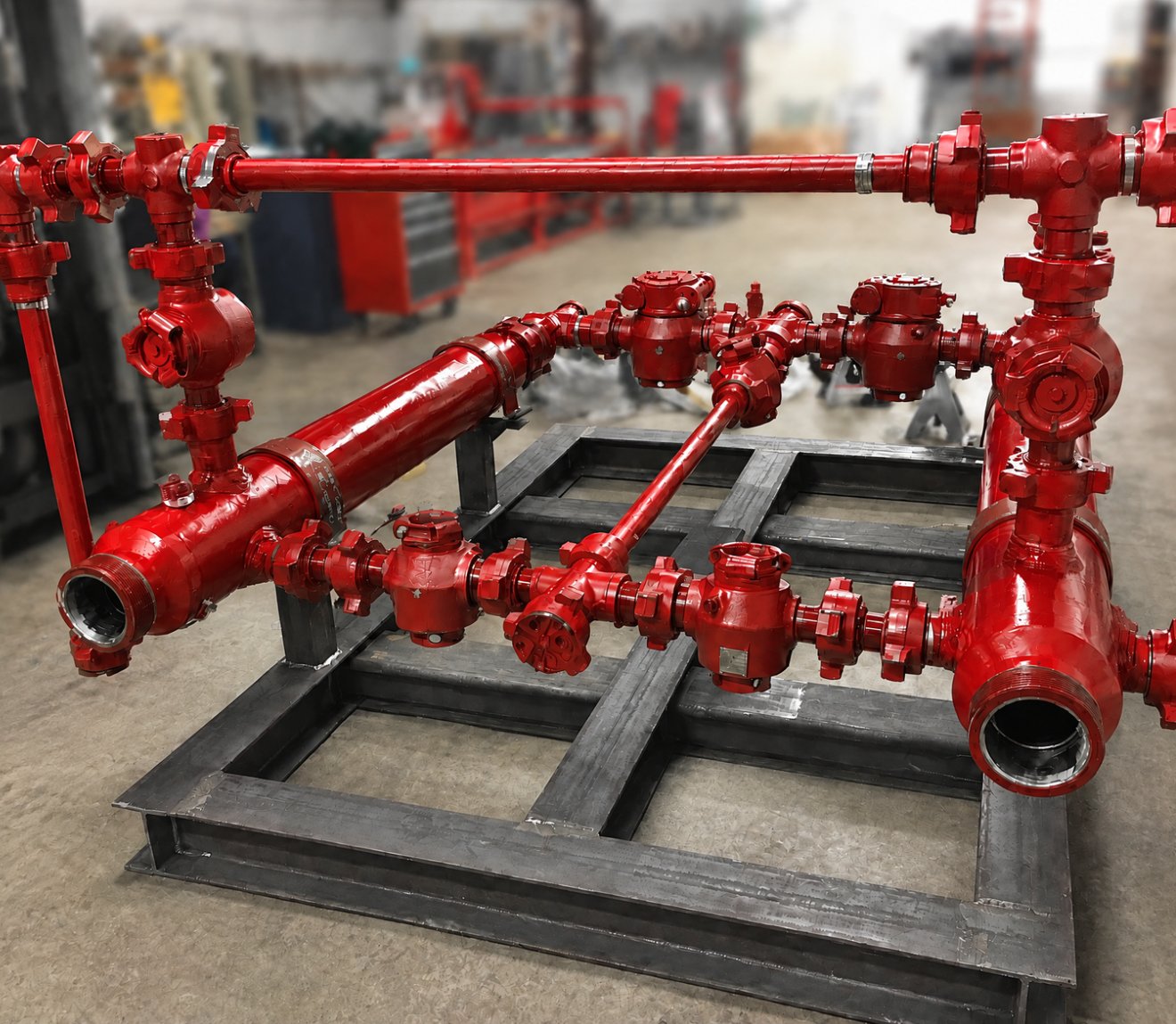

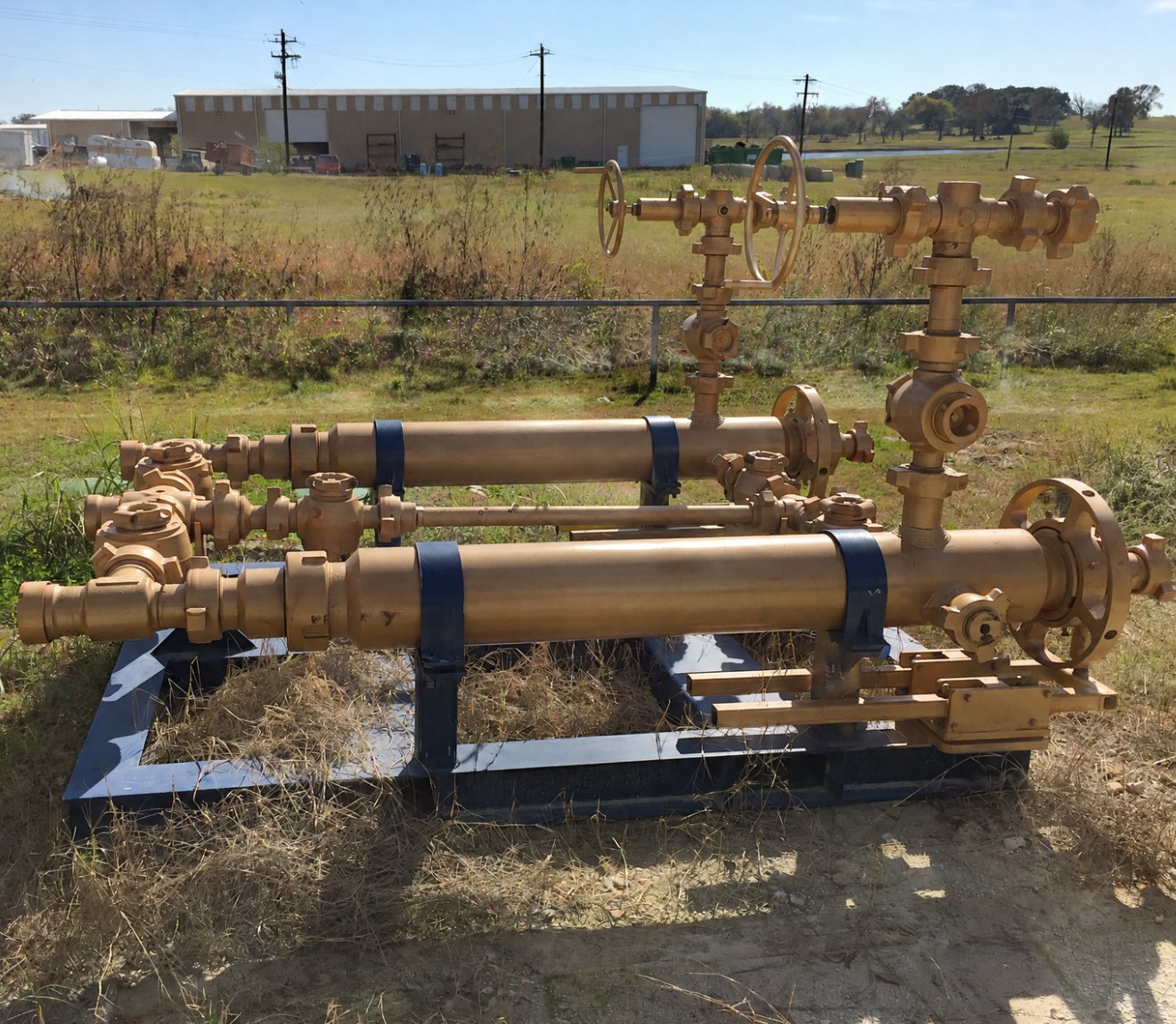

Plug Catchers

Plug catchers capture frac plug pieces and other debris returning with flowback, protecting downstream equipment.

• Dual barrel
• Pressure: 10,000 to 15,000 psi. Sweet or sour service
• Valve type: plug-valve or gate-valve based. Optional hydraulic dumping

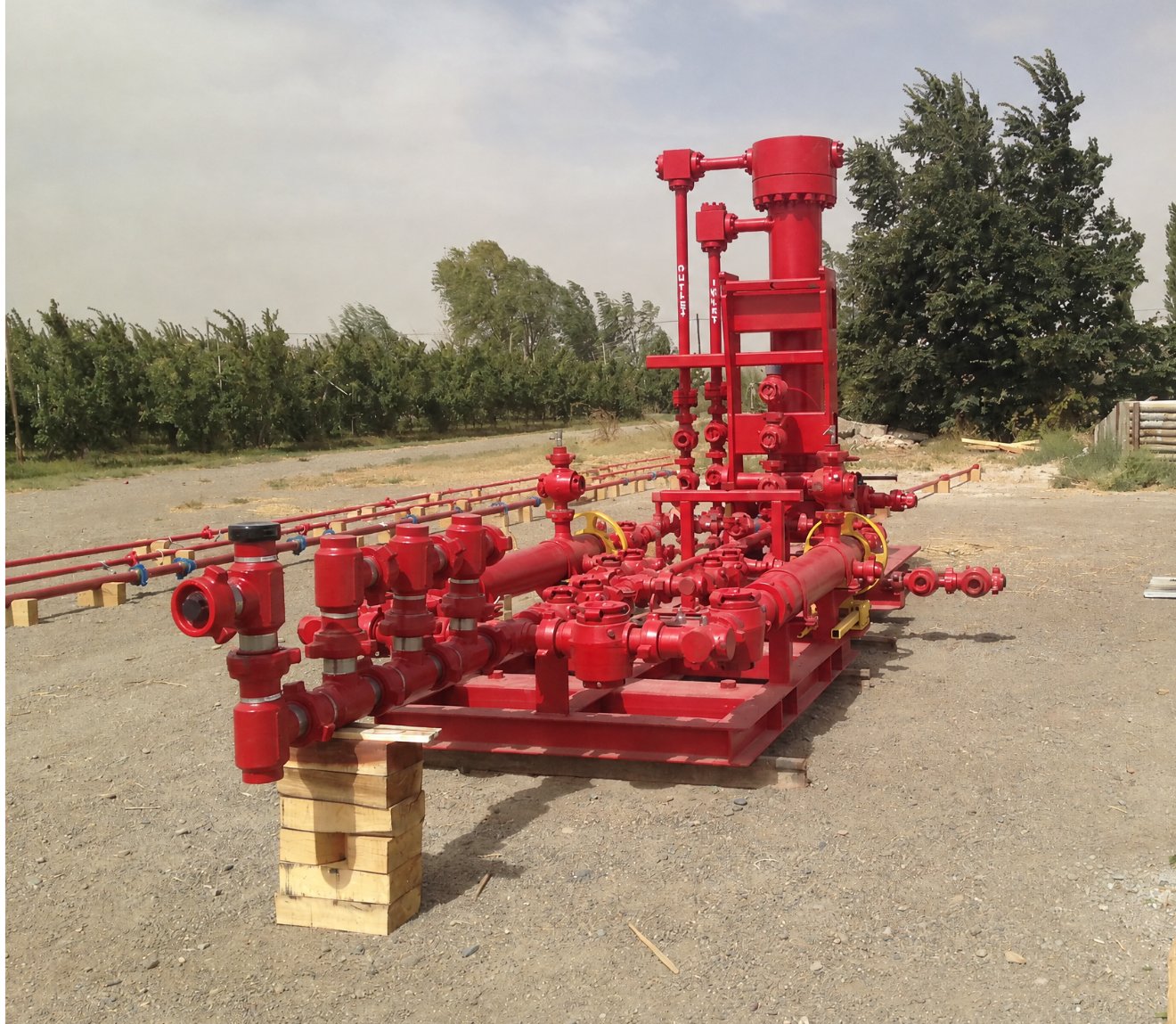

High-Pressure FPDO Manifolds

Engineered for Continuous Flow

Bridging the gap between a successful frac and maximum production requires ultimate control at the surface. Our FPDO (Frac Plug Drill Out) Manifolds are engineered to withstand the harshest post-frac cleanout environments, protecting your assets while keeping your operations moving.

What is an FPDO Manifold?

During the critical drill-out phase, a massive volume of fluids, gases, frac sand, and heavy plug debris is circulated back to the surface. The FPDO manifold sits directly at the wellhead to safely intercept, manage, and process this high-pressure, highly volatile stream before it can reach your downstream equipment.

Why Operators Trust Our FPDO Layouts

• Non-Stop Operations: Our manifolds feature a multi-valve grid layout that allows for seamless fluid diversion. Switch flow lines or clean out a clogged debris trap on one side without ever shutting down your downhole drilling operations.
• Extreme Erosion Resistance: Debris and frac sand are highly abrasive. Our systems route the volatile slurry directly through heavy-duty debris separators (plug catchers) to trap composite and metal plugs early.
• Proactive Pressure Management: Equipped with high-tier adjustable chokes, our manifolds provide operators with the precise backpressure control needed to manage volatile wellbores safely.
